AP Series - Automation - Nilkamal Material Handling

Product Description:

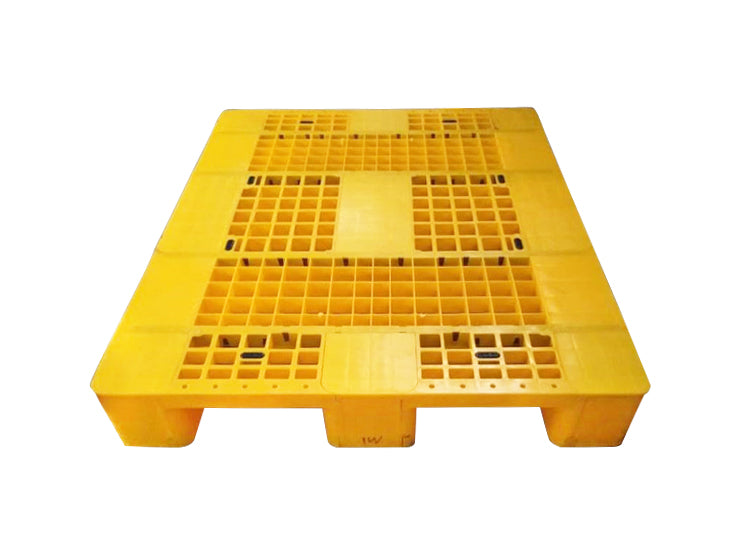

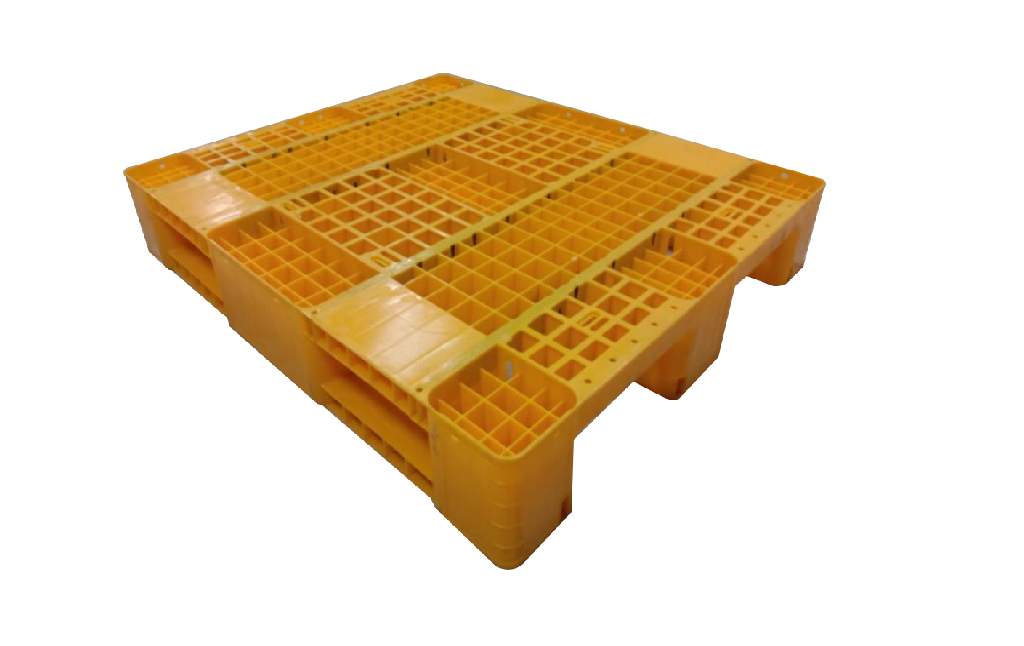

Nilkamal Pallets for Automated storage system is an obvious solution that perfectly complements automated handling systems. Nilkamal Injection Moulded Plastic Pallet for Automation easily moves on roller conveyors, chain conveyors, sortation equipment & robotic automation. Truly All-Purpose Pallet. Automated handling & storage systems can be disrupted due use of conventional plastic and wooden pallets for moving goods in the automated packaging areas, causing delays in retrieval and cost. Nilkamal Injection Moulded Plastic Pallet provides solutions for the following storage systems:

Hi-Bay Racking System
DRIVE-IN Racking System
Radio Shuttle Storage System
Automated Storage and Retrieval System (ASRS)

MANUFACTURING PROCESS	One-shot Injection Molded

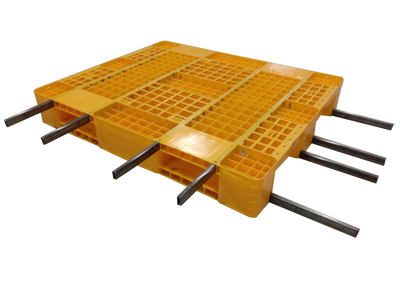

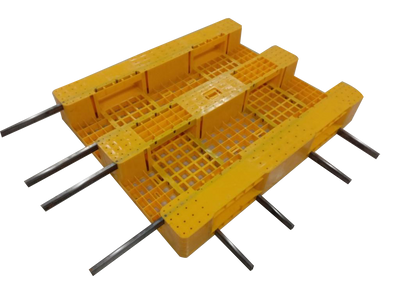

MATERIAL OF CONSTRUCTION	100% virgin UV grade HDPE with 4 galvanized tubular steel on runners & 4 tubular steel on the top deck
TYPE	Non-reversible, 3 longitudinal runners
ENTRY	4-way entry
MHE COMPATIBILITY	Suitable to handle with all kind of material handling equipment’s (manual pallet truck / forklift / reach truck and stackers)

Product Detail:

Static Load (UDL): 6000 kg

Dynamic Load (UDL): 1250 kg

Racking Load (UDL): Automated Racking Load : 1000 kg

Outer Dimension: 1200(L) x 1000(W) x 166(H) MM

Features: Perforated top with snap fit caps (9 caps) & bottom runner closed.
