Product Description:

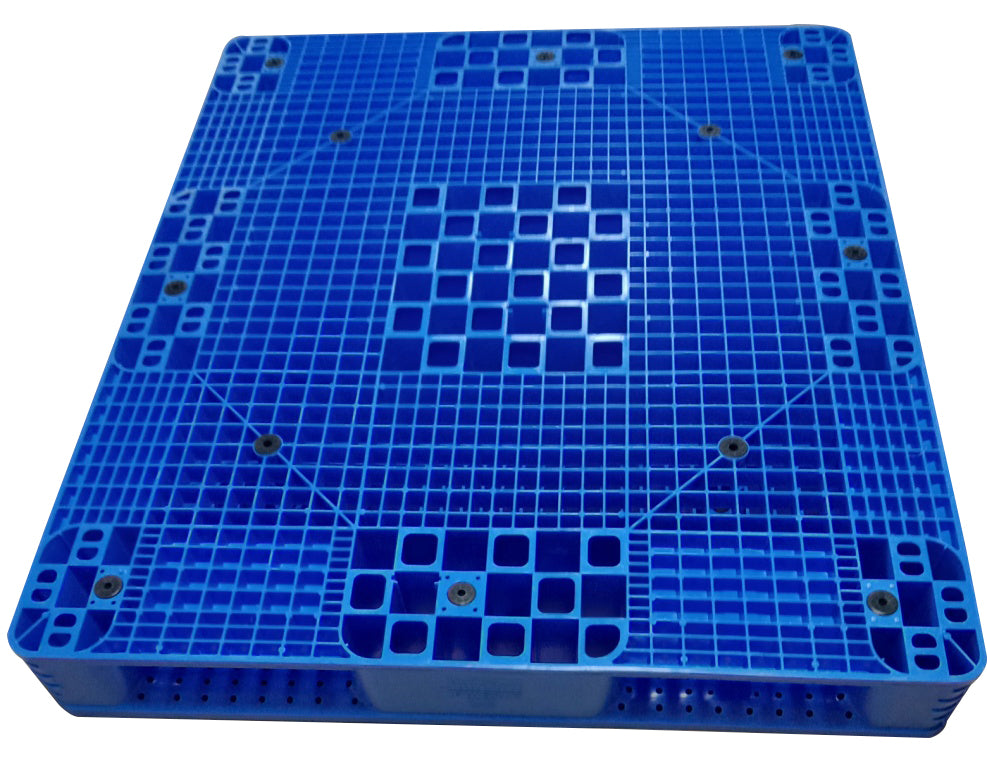

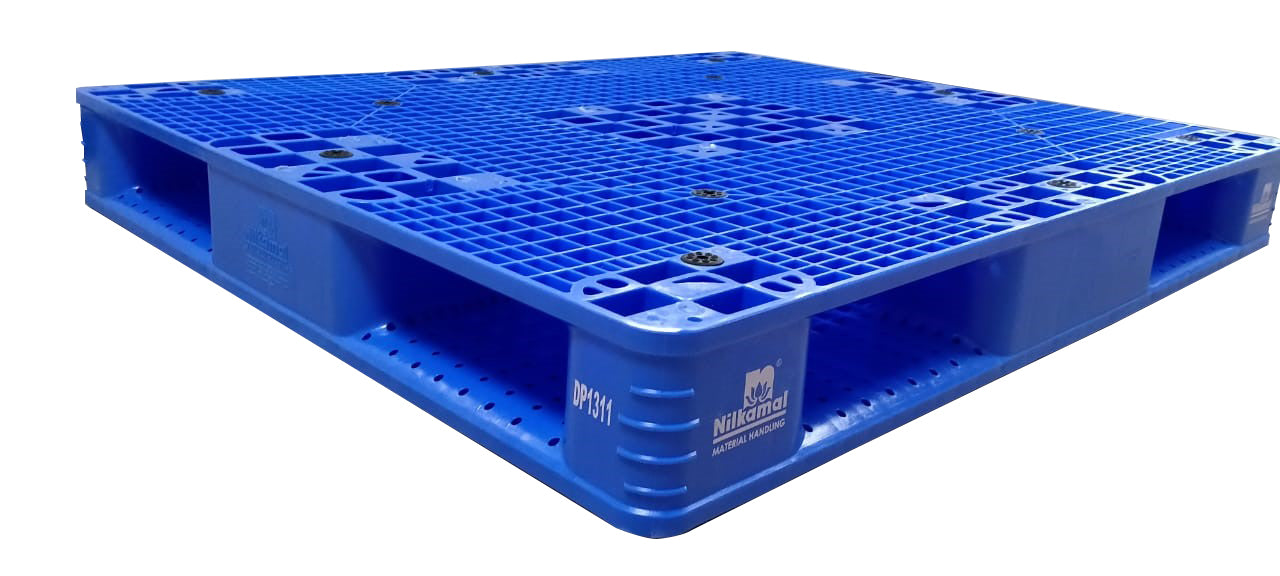

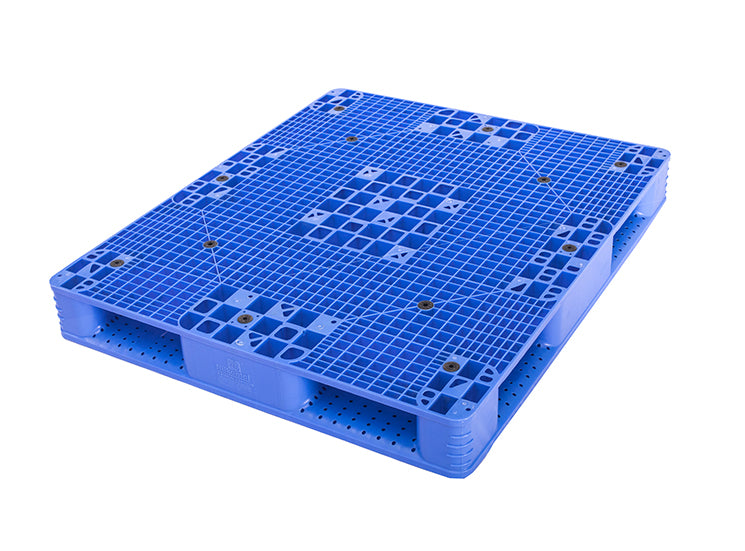

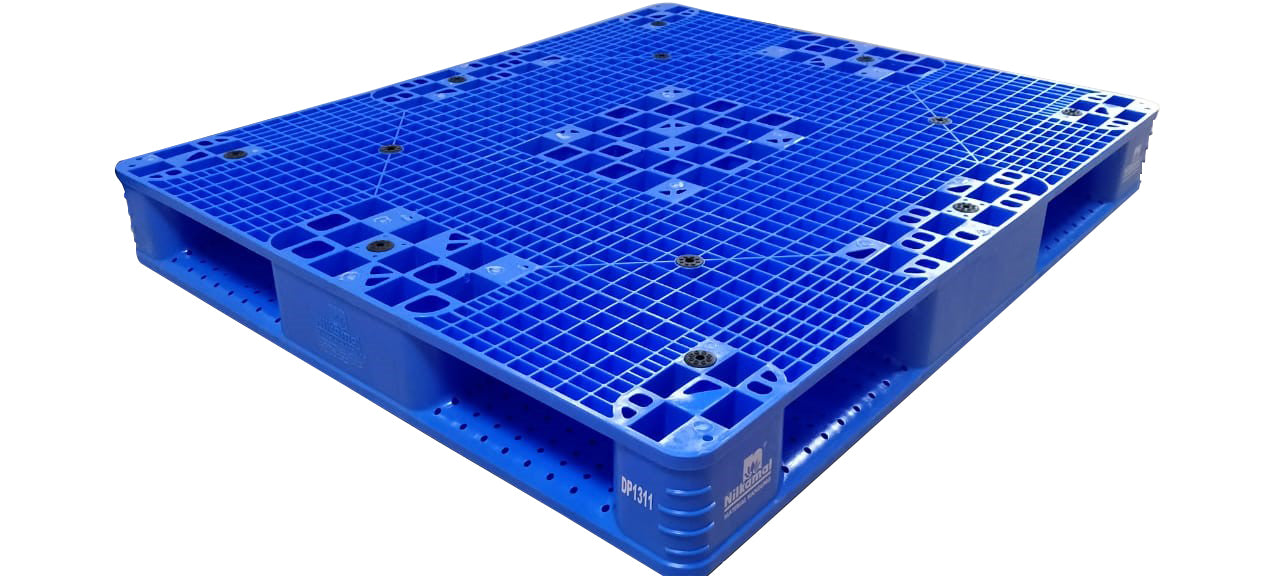

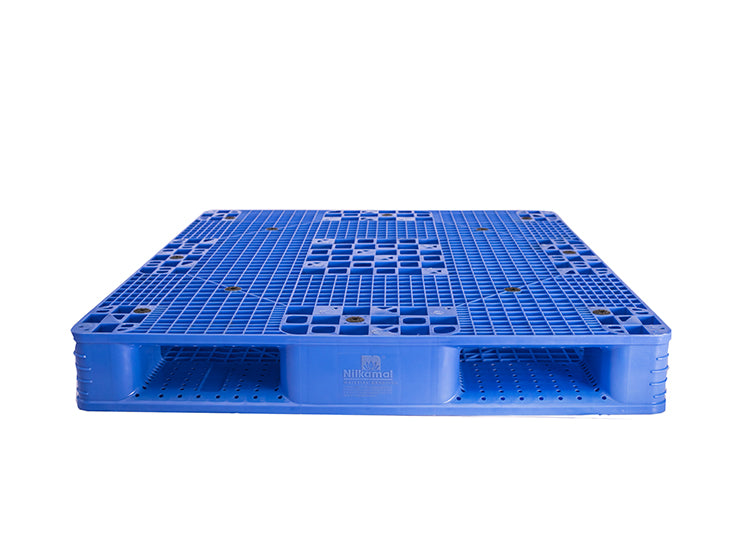

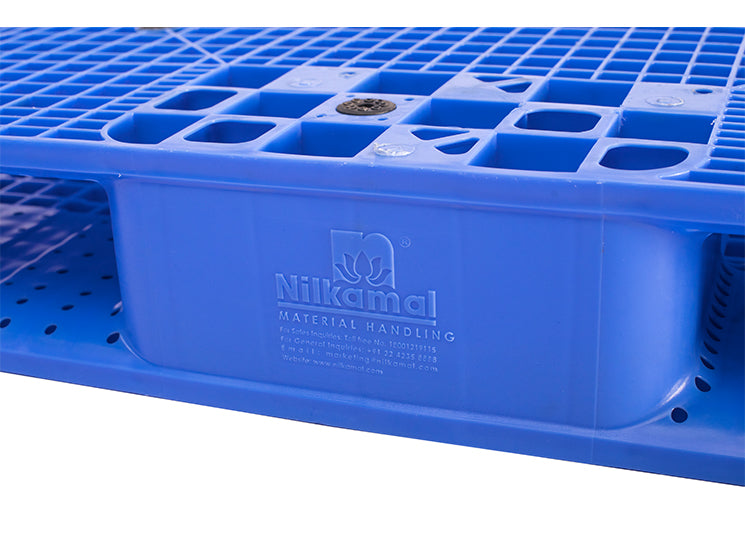

Nilkamal INJECTION MOULDED PLASTIC PALLETS made of 100 percent Virgin HD/PE Pallet grades (Nilkamal) (DP1311)

For Storing and Stacking of Bags (generally used Indoor/Outdoor and Warehouse for Polymer bags, Milk powder bags, etc.)

Reversible double deck pallet - A pallet built with matching top and bottom board layout.

Way for Entry/Fork entry: 4-ways fork entry inlet (for easy forklift operative)
Pallet Design: Perforated Pallet with 3 longitudinal skids and strapping hooks
Top Surface: Perforated Top with 12 numbers of grommet on grilled deck
Bottom Surface: Perforated Bottom with 12 numbers of grommet on grilled deck

Product Detail:

Static Load (UDL): Uniformly distributed Static Load : 3000 Kg

Dynamic Load (UDL): 1000 Kg

Racking Load (UDL): 600 Kg

Height: 150 MM

Weight: 25.5 Kilogram

Width: 1100 MM

Area of Performance: Plastic Pallet should be Withstand on Temperature (degree centigrade) up to 60 centidegree Celsius

Storage Capacity: 1 Metric Ton (25 x 40 Bags) on each pallet – stacked in three layers

Total Length: 1300 mm

Tolerances in Dimensions: +/- 5 mm (for Length, Width, and Height)

Tolerances in Weight: +/- 0.5 Kg
