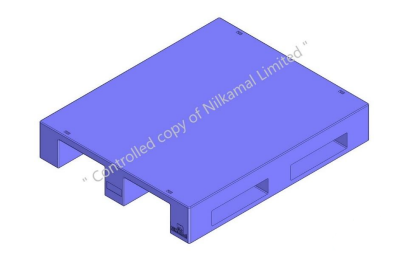

1200 X 1000 X 210 MM Roto Pallet for ASRS Automation

Product Description:

Suitable to handle all kinds of material handling equipment like Manual pallet truck/forklift/reach truck, stackers, radio shuttle.

Feature:

Universally adaptable to all kinds of Material Handling Equipment’s.
“EASY ROLL IN & ROLL OUT” the back-breaking strains are eliminated by tapered fork entry gates.
4 ways entry pallet design with 3runner suitable for different MHE. Empty stackable design.
“CFC” free PU reinforcement (Chloro Flouro Carbon Free)
Light weight yet viraat strength. Easy for manual intervention when required.
Flat top and Flat bottom with belt slot on pallet top deck and belt stripe on base of pallet

MANUFACTURING PROCESS	Rotational molded
MATERIAL OF CONSTRUCTION	100% virgin lldpe with pu & tubular steel reinforcement
TYPE	Non-reversible, 3 longitudinal runners with 2 barcode depression one on length & width side each (i.E 1200 / 1000 mm side)
SURFACE	FLAT TOP AND FLAT BOTTOM WITH RUBBER WITH BELT SLOT ON PALLET TOP DECK AND STRIPE ON BASE OF PALLET, WITH 2 BARCODE DEPRESSION BOTH SIDE OF WIDTH CENTRE LEG ONLY (I.E 1000 MM SIDE)
ENTRY	4 way entry

Product Detail:

Static Load: 3000 KG

Dynamic Load: 1000 KG

Racking Load: Automated Racking – 1000 KG

Height: 210 MM +/- 5 MM

Length: 1200 MM +/-5 MM

Width: 1000 MM +/- 5 MM
