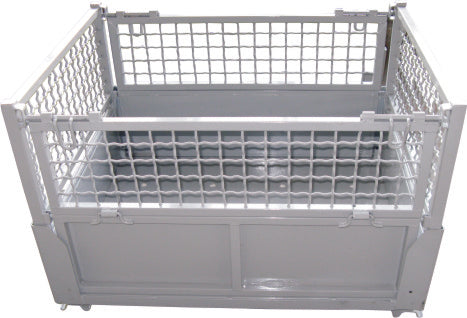

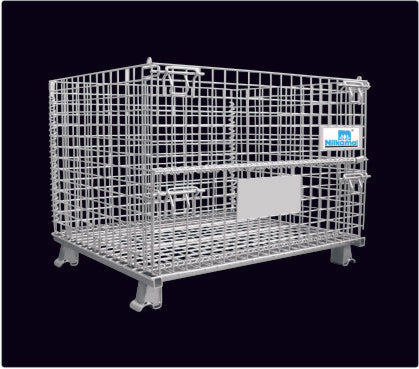

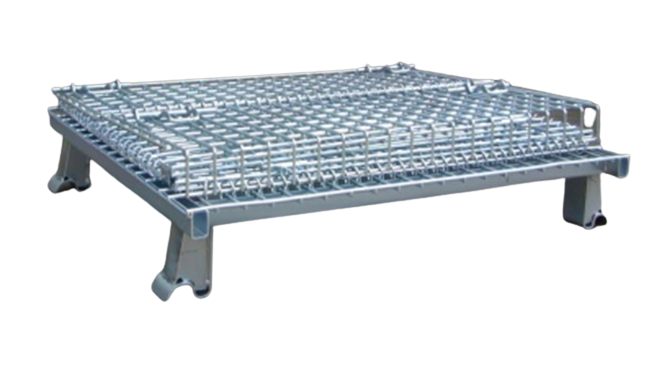

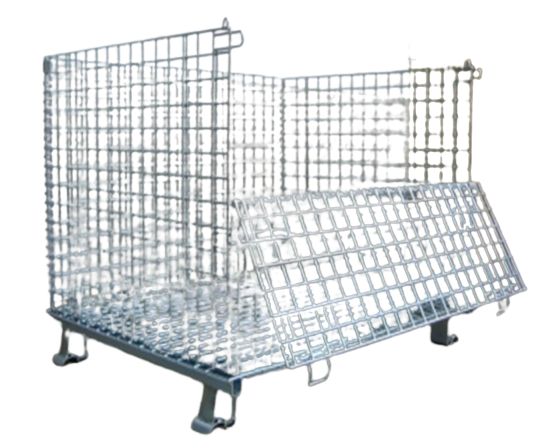

Foldable Metallic Wire Mesh Cages

Model : MWC8060640-6C-4L

MWC8060640-6C-4L
Size

ENQUIRE NOW

Product Description:

Used For:  Full View with foldable galvanized Cage for better bulk material handling and storage, JIT closed loop returnable systems.

Attribute:

  • Rustproof Durable and No Fire hazard.
  • Stacking is 1 + 4.
  • The wire gauge is 6mm for all variants.
  • Can withstand all kinds of environments.
  • Low weight to load ratio as containers are lighter.
  • No performance sacrifice in cold, hot, sultry, or highly corrosive atmosphere and salt spray conditions for ocean transportation.
Model Load Capacity (Kg.) Internal Dimensions (mm)  Internal Dimensions (mm) Mesh Pitch (mm) Wire Gauge Filled Stack
MWC8060640-6C-4L 800 Kg. 800 X 600 X 640 750 X 500 X 470 50 x 50 6 mm 1 + 4
MWC1080840-6C-4L 1200 Kg. 1000 X 800 X 840 950 X 760 X 670 50 x 50 6 mm 1 + 4
MWC1210890-6C-4L 1500 Kg. 1200 X 1000 X 890 1150 X 960 X 720 50 x 50 6 mm 1 + 4
MWC12108902R6C 1500 Kg. 1200 X 1000 X 890 1150 X 960 X 720 50 x 50 6 mm 1 + 4
MWC10805004L6C 800 Kg., 1000 X 800 X 500 950 X 760 X 380 50 X 50 6 mm 1 + 4
