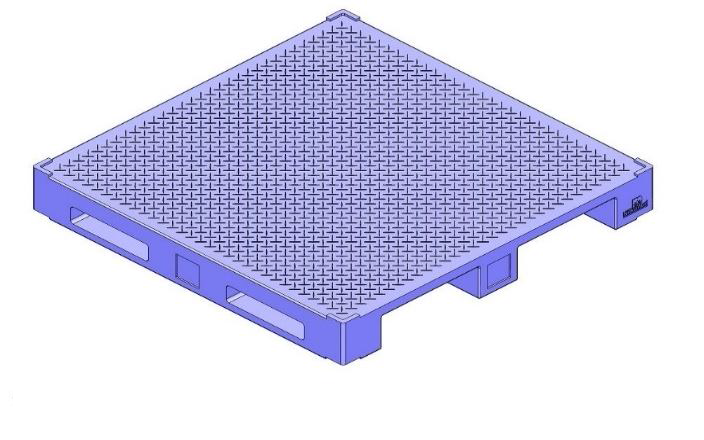

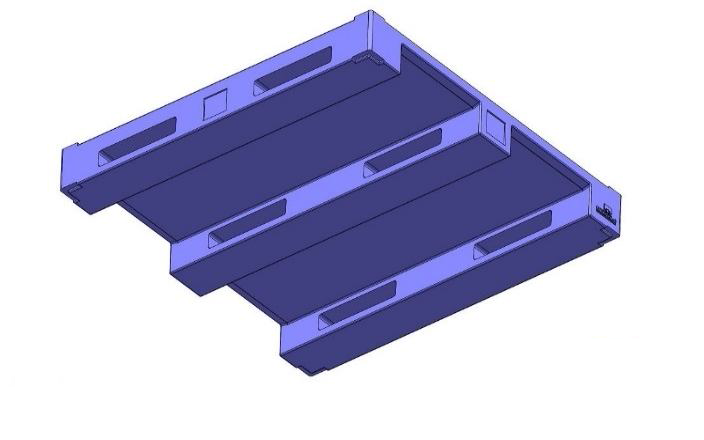

1200 x 1200 X 170 MM Roto Pallet For ASRS Automation

Product Description:

Suitable to handle all kinds of material handling equipment like Manual pallet truck/forklift/reach truck, stackers and automated racking system.

Feature:

“EASY ROLL IN & ROLL OUT” the back-breaking strains are eliminated by tapered fork entry gates.
4 ways entry pallet design with 3runner suitable for different MHE. Empty stackable design.
“CFC” free PU reinforcement (Chloro Flouro Carbon Free)
Light weight yet viraat strength. Easy for manual intervention when required.
Corner safety edge for smooth locking during pallet stacking / de-stacking.

MANUFACTURING PROCESS	Rotational molded
MATERIAL OF CONSTRUCTION	100% virgin LLDPE reinforced with PU & Tubular Steel Reinforcement
TYPE	Non-reversible, 3 runners
COLOUR	Blue /Natural /Grey
SURFACE	Chequered top and flat bottom; corner safety edge for Converyorised stacking/de-stacking, with barcode depression on all 4 sides i.e. Length & width side.
ENTRY	4 way entry

Product Detail:

Static Load (UDL): 3000 KG

Dynamic Load (UDL): 1200 KG

Racking Load (UDL): Automated Racking - 1000 KG

Height: 170 MM +/- 3 MM

Length: 1200 MM +/-5 MM

Width: 1200 MM +/-5 MM
